Robot for Semiconductor

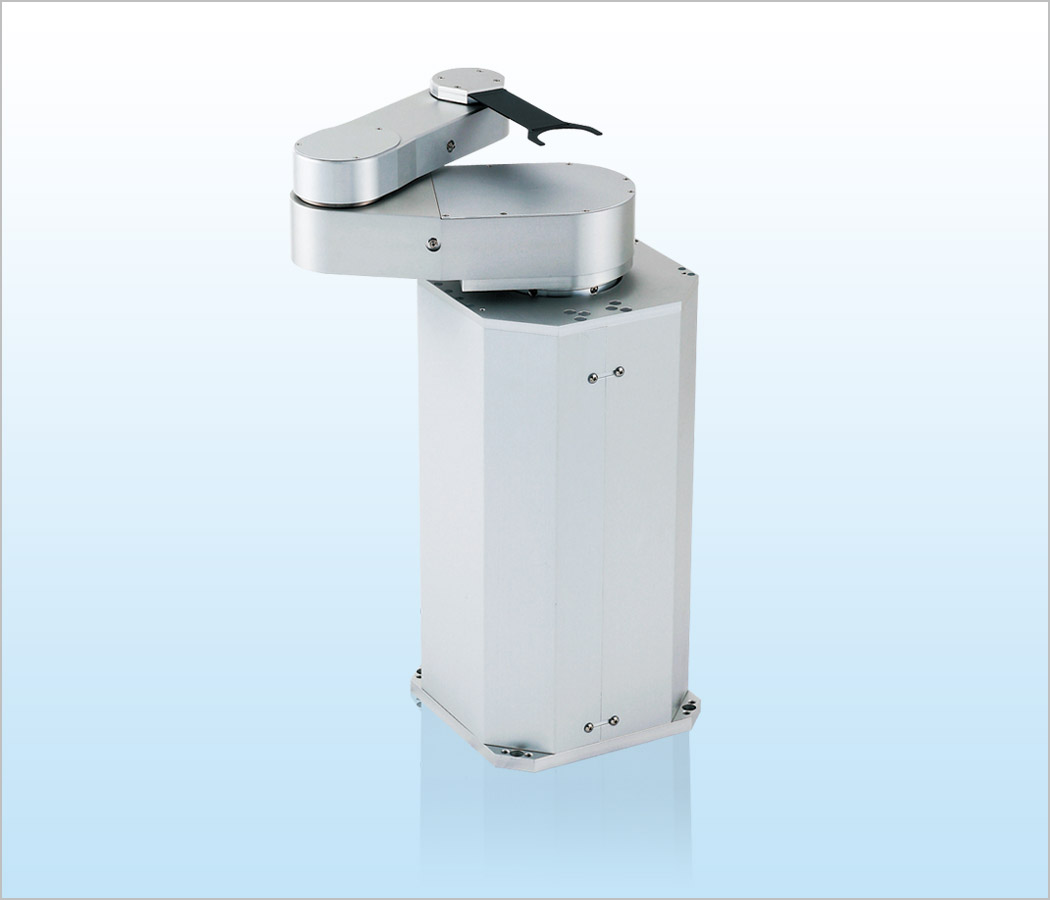

GCR4280 (For 300mm wafer)4-Axis Horizontal and Multi-Joint Type Clean Robot
Product Video |
Usage Environment/SpecificationsProduct Profile
List of Product Model
|
||||||||||||||||||
Characteristics
Designed for handling 300mm wafers in a production line or inspection line of semiconductor.
Execution of origin search is not required by using the servo motors with absolute encoders.
- 3 FOUP access is available without a track.
- Base or flange mounting type is selectable.
- Motion monitoring is available.
- AC servo motors with absolute encoders installed in all axes.
- High-speed, high-accuracy wafer handling by S-curved speed control and optimizing pass control.
- Wafer holding: end-effector with vacuum suction, passive edge, or edge grip.
- End-effector material: CFRP, Al, ceramic, or others.
- Optimal end-effector is selectable according to the carrying object and line layout.
Standard Specifications
| Specifications of Robot | ||||
|---|---|---|---|---|
| Robot Model | GCR4280-300-AM | |||
| Carrying Object | SEMI standard up to 300mm silicon wafer | |||
| Wafer Holding Method | By vacuum suction | |||
| Robot Model Type | Horizontal and multi-joint type | Control Axis | 4-axis | |
| Motor Type | AC servo motor | |||
| Operating Range | From the robot center to the wafer center | Rotation Angle (Theta-axis) | Vertical Stroke (Z-axis) | |
| 953mm | 335deg | 300mm | ||
| Carrying Speed | Arm (R-axis) | Rotation Angle (Theta-axis) | Vertical Stroke (Z-axis) | |
| 833mm/1.3sec | 335deg/1.2sec | 300mm/1.0sec | ||
| Repeatability | Within ±0.1mm | |||
| Cleanliness | ISO Class 2 (at wafer transfer level when exhausting driving part) | |||
| Utility | Power: AC200V single phase ±10% 2kVA; Vacuum: -53kPa or more | |||
| Specifications of Controller | ||||
| Controller Model | C5000S series | |||
| Interface | RS232C and parallel photo I/O | |||

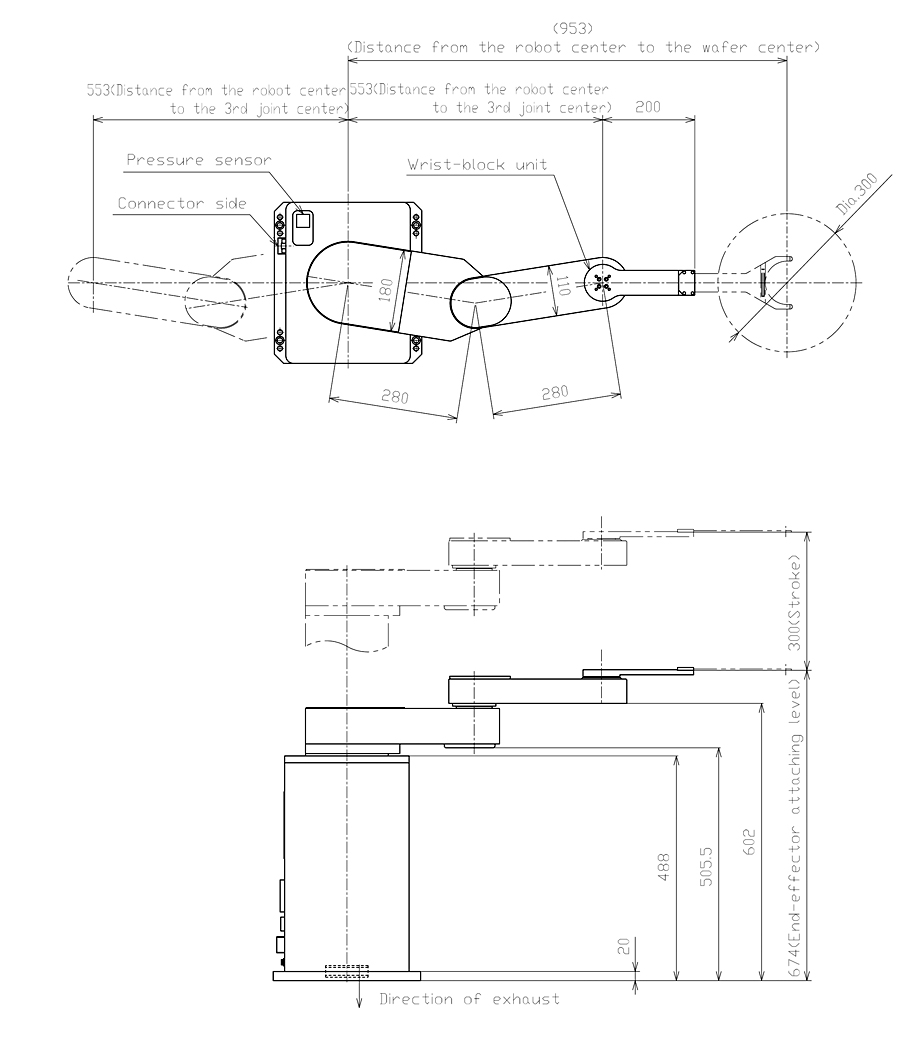

| Outline Drawing (Standard) |
|---|
|
Option
Wrist-Block Unit
| Model Name | Total Length | Mapping Sensor | Thickness of Attaching End-Effector |
|---|---|---|---|
| SARS00169 | 38mm | None | 2mm |
| SARS00958 | 38mm | None | 3mm |
| SARS02659 | 75mm | None | 2mm |
| SARS02967 | 75mm | None | 3mm |
| SARS08603 | 80mm | Transmissive sensor/Reflective sensor | 2mm |
*The table above shows the specifications of JEL standard wrist-block units. The other specifications are available.
*Click the items below to review the wrist-block units other than JEL standard types.
End-Effector
| Model Name | Size of Carrying Object | End-effector Type (Thickness) | Wafer Holding Method |
|---|---|---|---|
| SC-IW-200 | 3 inch, 100mm to 200mm | I-shape (2mm) | Vacuum suction |
| SC-IW-240 | 3 inch, 100mm to 300mm | I-shape (2mm) | Vacuum suction |
| SC-YW-200 | 100mm to 200mm | Y-shape (2mm) | Vacuum suction |
| SC-YW-227 | 100mm to 300mm | Y-shape (2mm) | Vacuum suction |
| SC-YW-240 | 100mm to 300mm | Y-shape (2mm) | Vacuum suction |
| 3D-02229 | 150mm～300mm | Y-shape (2mm) | Vacuum suction |
| SC3-YW-240 | 300mm | Y-shape (3mm) | Vacuum suction |
| 3D-01661 | 300mm | Y-shape (3mm) | Vacuum suction |
| SC3-IW-240 | 300mm | I-shape (3mm) | Vacuum suction |
*The table above shows the specifications of JEL standard end-effectors. The other specifications are available.
*Click the items below to review the end-effectors other than JEL standard types.
Operating Range
| End-Effector/Wrist-Block Unit | SARS00169 | SARS02659 | SARS08603 | SARS00958 | SARS02967 |
|---|---|---|---|---|---|
| SC-IW-200 | 562.7mm | 625mm | 630mm | - | - |
| SC-IW-240 | 602.7mm | 665mm | 670mm | - | - |
| SC-YW-200 | 572.7mm | 635mm | 640mm | - | - |
| SC-YW-227 | 599.7mm | 662mm | 667mm | - | - |
| SC-YW-240 | 612.7mm | 675mm | 680mm | - | - |
| 3D-02229 | 612.7mm | 675mm | 680mm | - | - |
| SC3-YW-240 | - | - | - | 612.7mm | 675mm |
| 3D-01661 | - | - | - | 612.7mm | 675mm |
| SC3-IW-240 | - | - | - | 602.7mm | 665mm |
