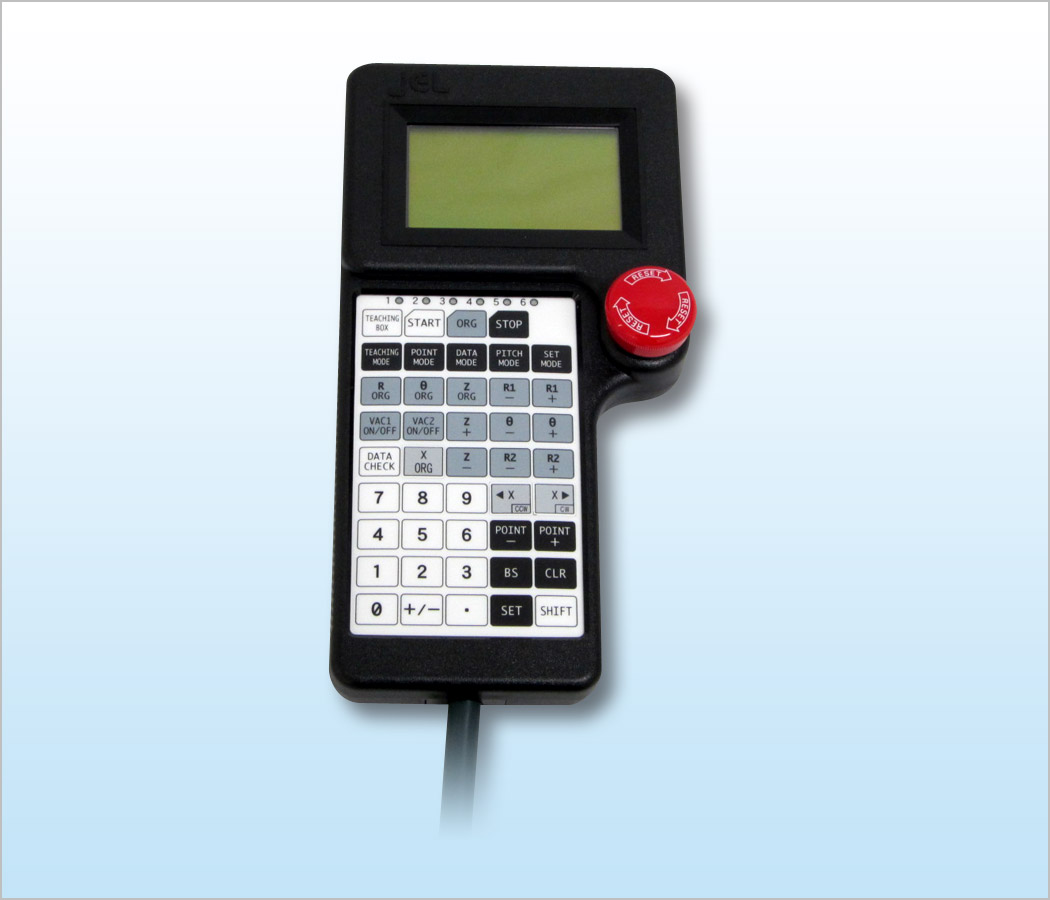

JCT4BX-0500Teaching Box
|
Usage Environment/SpecificationsProduct Profile
|
Characteristics
Used for teaching operation of robot.
Reading error codes is also available.
- Equipped with 3-position dead-man switch
- Easy to operate, one-handed type, weighing only 500g (cable excluded)
- Max. 2 of normally closed contact is available for emergency stop push-button switch
- Equipped with push-button self-diagnosis function by internal software
Standard Specifications
| Specifications | |||
|---|---|---|---|
| Input Voltage | DC24V (±5%) | ||
| Communication | RS422 | ||
| Environment | 0 to 40℃ (No condensation) | ||
| Attached Cable | Up to 10 meters | ||
| Emergency Stop Contact | Normally closed contact | ||
| External Dimensions | W118×H225×D33（w/contrast adjustment hole attached/Emergency stop button excluded) | ||
| Mass | 500g（Cable excluded) | ||
| Display Screen | LCD monochrome graphic display (66.6×33.3mm, 20×8 characters, 128×64 dots) | ||
| Connector | DA-15PF-N (Japan Aviation Electronics Industry, Ltd.) | ||
| Emergency Stop Button | A165E-S-03U (Red) (OMRON) Output for emergency stop switch: Normally closed dry contact (UL508 and EN418 standard compliant) |
||
| Deadman Switch | A4E-B200HS (OMRON) 3-position enabling switch (UL508 and ANSI/RIA R15.06-1999 standard compliant) |
||
| Key Sheet | Thin dome array sheets: 9 columns x 5 rows (45 pcs) | ||
| Applicable Robot Type | Cylindrical coordinate type with X-axis | ||
