C4000Controller

C4000

Usage Environment/Specifications


Product Profile

Model NameC4000
InterfaceRS232C and parallel photo I/O

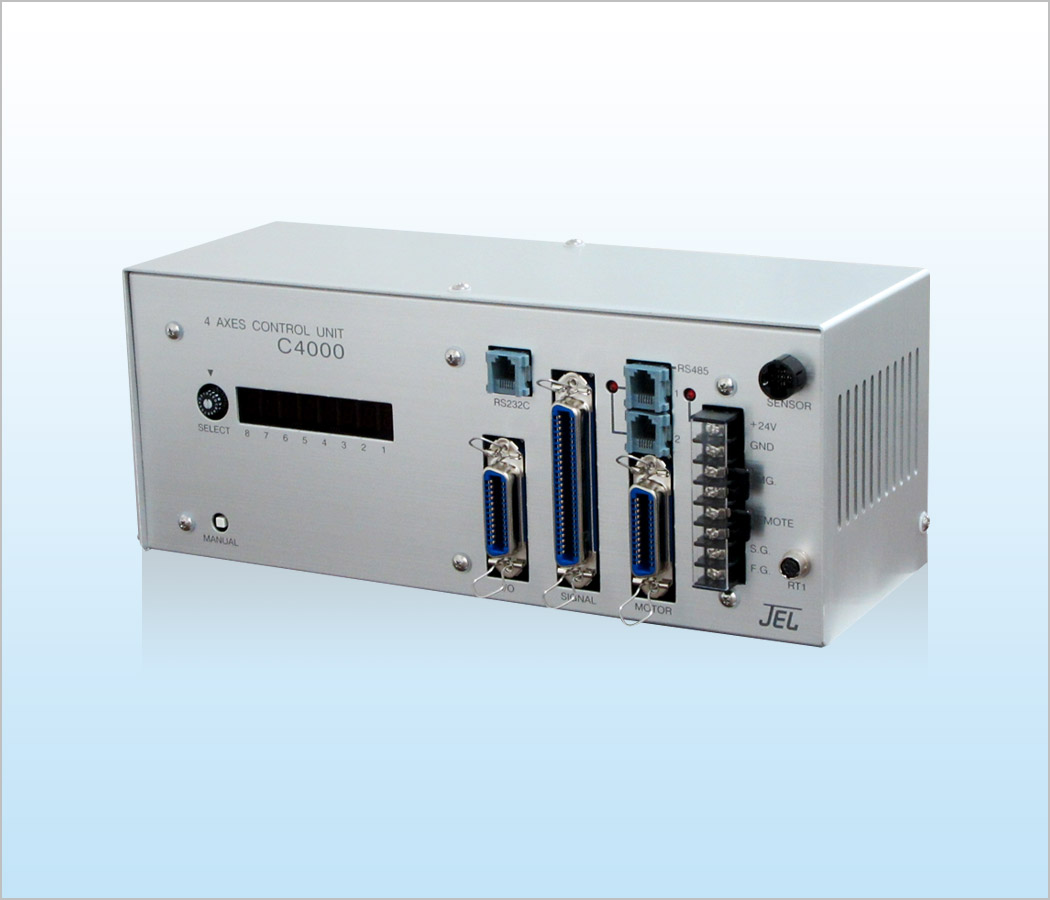

  • The image above is of C4000.

Characteristics

JEL has accumulated know-how on methods of the controller development of our robots for semiconductors or FPD.
Customization is available. Contact us for the detailed specifications.

  • Compact and lightweight design
  • Stepping motor: Unipolar/bipolar stepping motor
  • Controller interface: RS232C and parallel photo I/O (8 bit IN and OUT, I/O extension available) are standard.
  • High-speed and smooth operation by S-curved speed control
  • Easy teaching with the teaching box
  • Flexible combined operations by compound commands

Standard Specifications

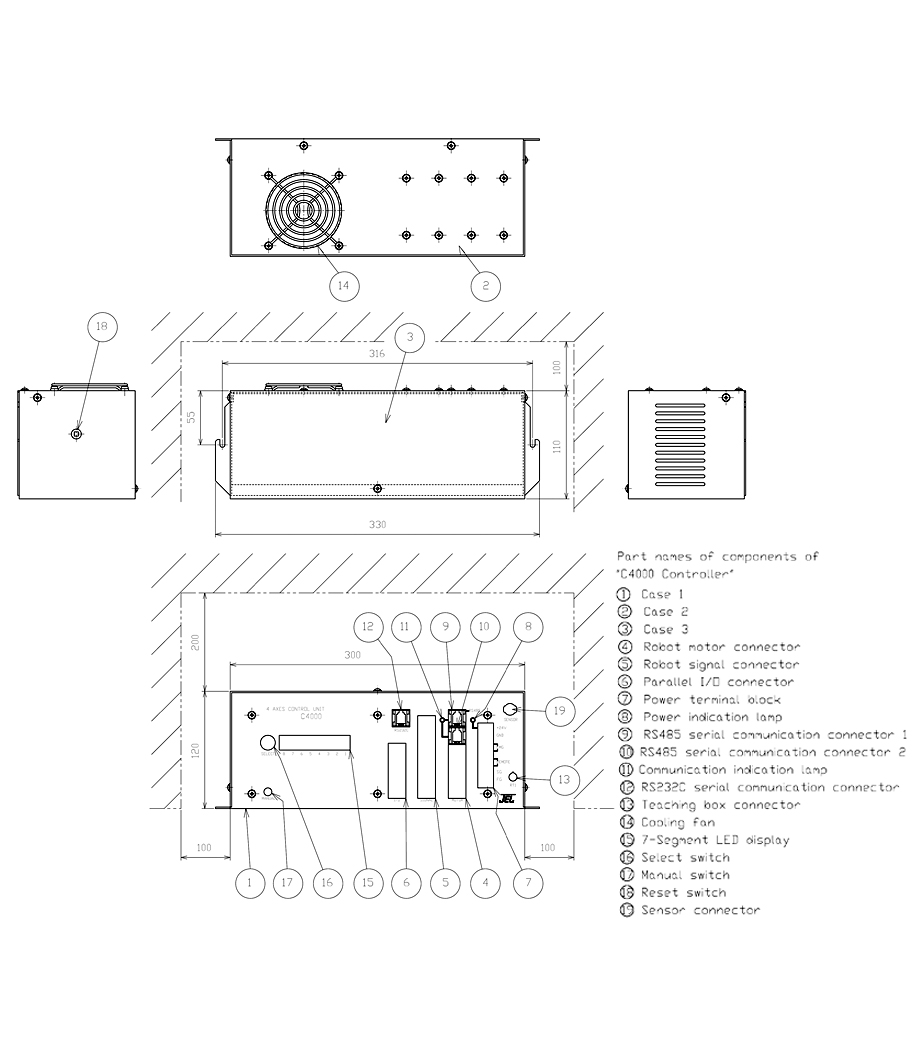

Outline Drawing (Standard)
C4000
